Exploring Microsoft Cloud App Security with PowerShell – Part1

Posted onAuthorAlex Verboon3 Comments

Last Friday I was given the opportunity to present at the Configuration Manager Community Event (CMCE1905) in Bern, Switzerland. Although Microsoft Cloud App Security is not really related to ConfigMgr, many of the attendees are dealing with managing classic and modern workplaces and security is almost on everyone’s list of interest. During my session “Unleash the power of Microsoft Cloud App Security” I also demonstrated how one can explore information within Microsoft Cloud App Security through PowerShell. So, for all those interested how to do that, here we go.

  • In Part 1 of this blog series I explain how to install the PowerShell Module and set credentials to connect to MCAS with PowerShell, furthermore we take a look at some of the available PowerShell commands to pull data from Microsoft Cloud App Security
  • In Part 2 we drill down into specific Cloud App Security activities and alerts

Microsoft Cloud App Security provides an API interface that’s described here. But there’s also an Unofficial Microsoft Cloud App Security PowerShell module hosted on GitHub and hosted as well in the PowerShell Gallery, so that’s what we’re going to use here.

Installing the PowerShell Module

The PowerShell Module for Microsoft Cloud App Security “MCAS” is installed as following:

Install-Module -Name MCAS

Registering an API Token

To connect to MCAS using the MCAS PowerShell Module we need an API Token. This can be generated within the Microsoft Cloud App Security Portal.

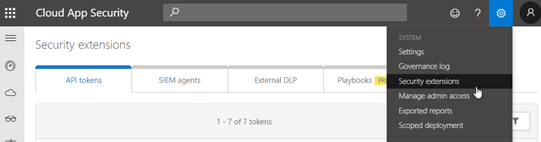

Select Settings, Security Extensions

Click on the + button to create a new Token.

Enter a descriptive name and click Generate

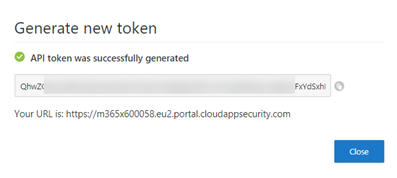

Copy the API Token now (you won’t be able to display it again) and also copy the URL

Set the MCAS Credential Variable

When launching an MCAS cmdlet such as Get-MCASAlert, you’ll be prompted to enter credentials, where the username is the URL and the Password is the API Token.

When running Get-MCASCredential we can set the credentials for the current PowerShell session, but I found it annoying to run this command each time I started a new PowerShell session, so here’s what I’m using. We can save the credentials in a variable, because all the functions look for a credential variable $CASCredential.

Run the following commands (replace the URL and API Token with your information).

# Set the MCAS Credential Variable
$MCASToken="<YOUR TOKEN>"
$MCASUrl="<YOUR URL>"
$User=$MCASUrl
$PWord=ConvertTo-SecureString -String "$MCASToken" -AsPlainText -Force
$CASCredential=New-Object -TypeName System.Management.Automation.PSCredential -argumentList $User, $PWord
$Credential=$CASCredential

Example:

We can test the credentials by just launching an MCAS function such as Get-MCASConfiguration, if the function returns information the credentials are good to go.

Exploring MCAS with PowerShell

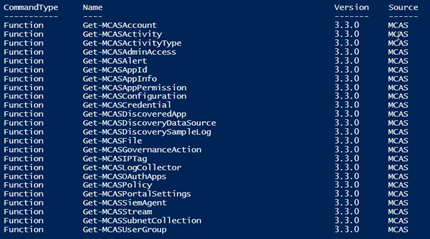

Now let’s take a look at the commands available to explore MCAS through PowerShell

Get-Command -Module MCAS -Name Get*

So, if we run the following command, we get all the MCAS Alerts that have a high severity.

Get-MCASAlert -Severity High

Or if we want to see all events form a partical user we can run

Get-MCASActivity -UserName “jane@verboon.org”

So that’s it for today, in Part 2, we’ll look into more details and examples using PowerShell to explore Microsoft Cloud App Security. Stay tuned.

Related posts:

  1. Retrieving Windows Defender ATP query API data with PowerShell
  2. Exploring Microsoft Security Update information with PowerShell
  3. Stay in Control of AzureAD Enterprise Application registrations with Cloud App Security
  4. Exploring the Blockchain – Part1
  5. How to monitor your Azure AD emergency account with Cloud App Security

3 Replies to “Exploring Microsoft Cloud App Security with PowerShell – Part1”

  1. Hi Alex,

    I came across this article while searching for ways to connect to Cloud App Security via PowerShell. We had been configuring everything manually and would like to script it to make setup much easier and your documentation helped to get connected but running into issues. I generated the token and copied that along with URL then copied those over to the Credential Variable you listed above. Regardless of using MFA account or without it always throws the same error below.

    Invoke-MCASRestMethod : Cannot validate argument on parameter ‘Credential’. The ”
    $_.GetNetworkCredential().Password -match ($MCAS_TOKEN_VALIDATION_PATTERN)
    ” validation script for the argument with value “System.Management.Automation.PSCredential” did not return a result of True. Determine why the validation script failed, and then
    try the command again.
    At C:\Program Files\WindowsPowerShell\Modules\MCAS\3.3.4\Functions\Get-MCASActivity.ps1:468 char:60
    + … $response = (Invoke-MCASRestMethod -Credential $Credential -Path ” …
    + ~~~~~~~~~~~
    + CategoryInfo : InvalidData: (:) [Invoke-MCASRestMethod], ParameterBindingValidationException
    + FullyQualifiedErrorId : ParameterArgumentValidationError,Invoke-MCASRestMethod

    ConvertFrom-Json : Cannot bind argument to parameter ‘InputObject’ because it is null.
    At C:\Program Files\WindowsPowerShell\Modules\MCAS\3.3.4\Functions\Get-MCASActivity.ps1:471 char:41
    + $response = $response | ConvertFrom-Json
    + ~~~~~~~~~~~~~~~~
    + CategoryInfo : InvalidData: (:) [ConvertFrom-Json], ParameterBindingValidationException
    + FullyQualifiedErrorId : ParameterArgumentValidationErrorNullNotAllowed,Microsoft.PowerShell.Commands.ConvertFromJsonCommand

    Invoke-MCASRestMethod : Cannot validate argument on parameter ‘Credential’. The ”
    $_.GetNetworkCredential().Password -match ($MCAS_TOKEN_VALIDATION_PATTERN)
    ” validation script for the argument with value “System.Management.Automation.PSCredential” did not return a result of True. Determine why the validation script failed, and then
    try the command again.
    At C:\Program Files\WindowsPowerShell\Modules\MCAS\3.3.4\Functions\Get-MCASActivity.ps1:503 char:67
    + … $response = Invoke-MCASRestMethod -Credential $Credential -Path ” …
    + ~~~~~~~~~~~
    + CategoryInfo : InvalidData: (:) [Invoke-MCASRestMethod], ParameterBindingValidationException
    + FullyQualifiedErrorId : ParameterArgumentValidationError,Invoke-MCASRestMethod

    I copied the URL as is along with the token which assume is correct? Any thoughts on what else to try or do you think it’s just because it may require up to 24 hours per most things with Microsoft Propagation? Also wondering if you have any other articles that would help with automating cloud app security roll outs? Since we are MSP and have several clients, it would make life much easier to automate rolling out via PowerShell since we use the same policies for all of them now along with email, SMS alerts.

    Kind Regards,
    Scott White

  2. I noticed that there was a type instead of -rgumentList change to -ArgumentList (note the missing A) , however after updating that one i get a new error saying that “detail”:”Invalid user – the owner of this token is not permitted to use tokens” i am going to wait a bit and try it again.
